Trio HST

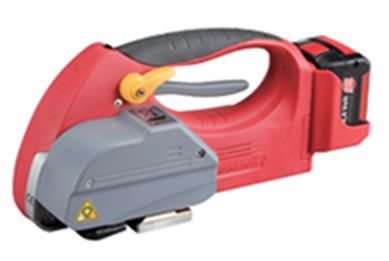

TRIO HST Electric Hand Strapping Tool

  • High Speed
  • Ergonomic and Rugged Design
  • Easy Strap Threading
  • Flexible Tensioning Mode


For All Kinds of Flat Packages

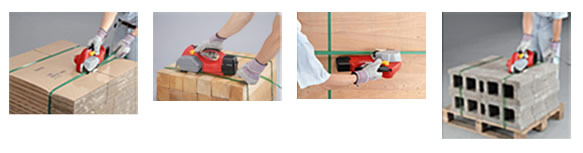

It is suitable for a wide range of vertical and horizontal strapping applications in all industrial sectors (pallet, construction materials, wood/panel board, paper…etc.)

Easy Single-Handed Operation

One single thumb pressing operates the tool.
Tensioning, sealing and cutting are done at the touch of the start button.
It is the most user-friendly tool.


Sealing Time
Adjustable sealing time allows individual setting for different strap types and quality to guarantee the high efficiency.

Strap Tension
Strap tension adjustment can be easily done by the simple turn of a dial. Appropriate tension ensures ideal load security.

Friction Weld Sealing
The advanced friction weld sealing technology guarantees reliable joint and high seal efficiency.

Battery Powered
Battery operation makes the Helios independent of any power supply.
Ready to use anywhere.
High battery capacity provides up to 400 (for PP) and 220 (for PET) strapping cycles per charge.
Rechargeable battery with long battery life up to 1,000 charges.

  • Suspension bracket (Stiff or Turntable)
  • Bottom base wearing protection plate


  • Strap Type: PP & PET straps
  • Strap Width: 9 mm (H-45L-09), 12 mm (H-45L-12), 16 mm (H-45L-16)
  • Strap Thicknes:s PET:0.50 mm-1.05 mm + P.P.:0.55 mm-1.05 mm
  • Maximum Strap Tension: 220 kg / 2200 N
  • Joint Efficiency: 75-80%
  • Maximum Tension Speed: 270 mm / second
  • Net Weight: 4.26 kg (including battery)
  • Battery: 14.4VDC 2.60Ah Li-lon (Strapping tool includes one battery)
  • Battery Charger: 115V (110V-120V), 230V (220V-240V) 50/60Hz 1PH
  • Manufacturer of Battery & Battery Charger: BOSCH
