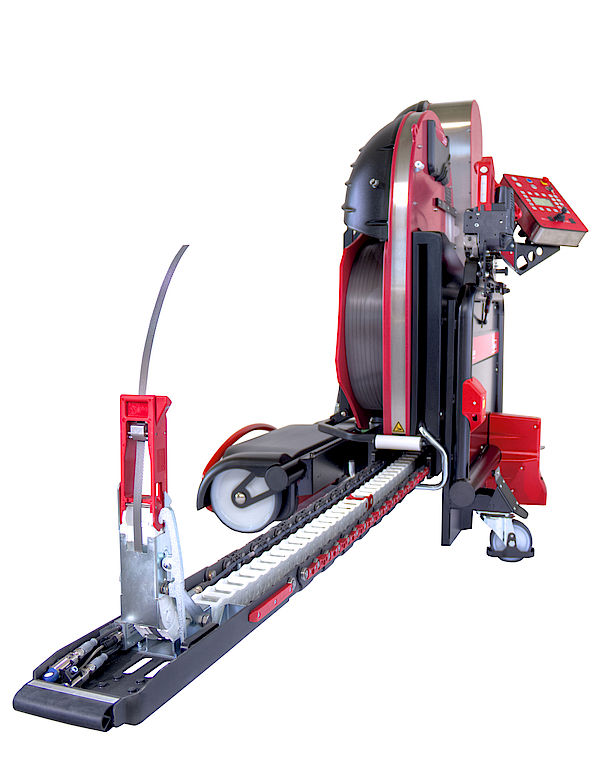

Ergopack Air


Ergonomic pallet strapping system for high-standing pallets.

With the height adjustable “Air” also high-standing pallets can be strapped now in an ergonomic way, standing upright and without bending down. This is allowed by a patented levitating double ChainLance. The double ChainLance can be adjusted steplessly up to 580mm height. Furthermore, by means of two ultrasonic sensors, the “Air” version possesses an automatic detection of the pallet width.

To strap pallets on:

  • conveyor lines
  • lifting tables
  • all kinds of trolleys
  • with electrical drive via joystick
  • automatic measurement of pallet width
  • for PP-, PET straps
  • with sealing head (tension force 2500N / 4000N)
  • and Triplex-Tool-Lift

  • Dimensions:
    Width = 1360mm
    Height = 1600mm
    Depth = 1240mm
  • Weight:
    280 kg
    (incl. battery)
  • Maximum pallet dimensions:
    Width: 2,40 m
    (Self-supporting up to 2,00 m, with first point of support between 1,00 m and 1,80 m up to 2,40 m)
  • Height: 2,00 m
  • Minimum clearance: 50 mm
  • Minimum width: 180 mm
  • Maximum vertical height between floor and pallet: 580mm (electrical adjustment of height with 5 storable height positions)
  • Adjustment of pallet width:
    a) manually by keyboard
    b) automatic recognition of pallet width by ultrasonic sensor system
  • Display: colour display 4,3 inches with special membrane keyboard for operation with work gloves
  • Double ChainLance Composed of:
    1. Guiding ChainLance: High tensile, fibre-glass reinforced, rigid at frontward side,special self-lubricating ChainLance, maintenance free
    2. Suspension ChainLance: Special ChainLance rigid at frontward side, made of high tensile aluminium u-profiles. Joints of alloyed steel pins and of maintenance free and self-lubricating sinter bronze bearing bushes
  • Equipment:
    Tool set
    Sealing head 2.500N respectively 4000N
  • Welding mode: Friction welding
  • insertion mode: Strap on strap
  • Applicable strap types: PET, PP
  • Width of strap:
    Air 725-580: 12 – 16mm
    Air 740-580: 16 – 19mm
  • Tension force:
    Air 725-580: until 2.500N
    Air 740-580: until 4.000N
  • Input Voltage: 24V DC
  • Battery: 24V/35Ah, Pb
  • Charge time: app. 8-9h
